Amtrol 110-P/1 FILL-TROL Expansion Tank, 4.4 Gallon (110-9) Reviews
Other Picture
Amtrol 110-P/1 FILL-TROL Expansion Tank, 4.4 Gallon (110-9) Feature
- Amtrol
- 110-P/1
- Amtrol FILL-TROL Expansion Tanks

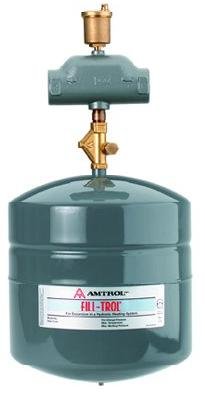

Amtrol 110-P/1 FILL-TROL Expansion Tank, 4.4 Gallon (110-9)The Amtrol FILL-TROL 110-P/1 Expansion Tank system consists of a specially adapted EXTROL pre-pressurized, diaphragm-type expansion tank, the FILL-TROL, a specially designed, automatic, pressure-reducing fill valve, Purger, and Vent.; Provides accurate system make up; Fully Adjustable up to a maximum working pressure of 100 psig; Factory pre-charged to 12 psigAmtrol FILL-TROL 110-P/1 Expansion Tank Specifications:; Model Number - 110-P/1; Tank Volume (Gallons) - 4.4; Max. Accept. Volume (Gallons) - 2.5; A Height (Inches) - 17-3/8; B Diameter (Inches) - 11; System Conn. (NPTF) - 1; Air Purge: 444; Air Vent: 700-C; Maximum Working Pressure = 100 PSIG; Maximum Operating Temperature = 240;F; Factory Precharge = 12 PSIGHow the Amtrol FILL-TROL 110-P/1 Expansion Tank System Works:Water enters the FILL-TROL valve, pushing open the check valve, and flows into the heating system. The automatic shut-off valve is kept open by the diaphragm pressing against the pressure plate, raising the stem of the fill gate, which compresses the automatic shut-off valve spring. When the heating system reaches fill pressure (12 psig), the tank's diaphragm depresses, and the automatic shut-off valve is closed. Whenever system pressure falls below 12 psig, the automatic shut-off valve is pressed open by the diaphragm. Make-up water flows into the system to restore pressure.
